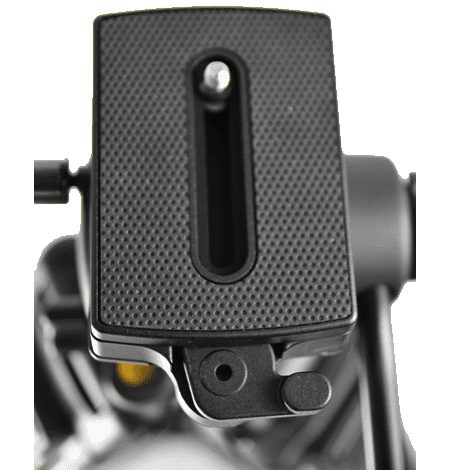

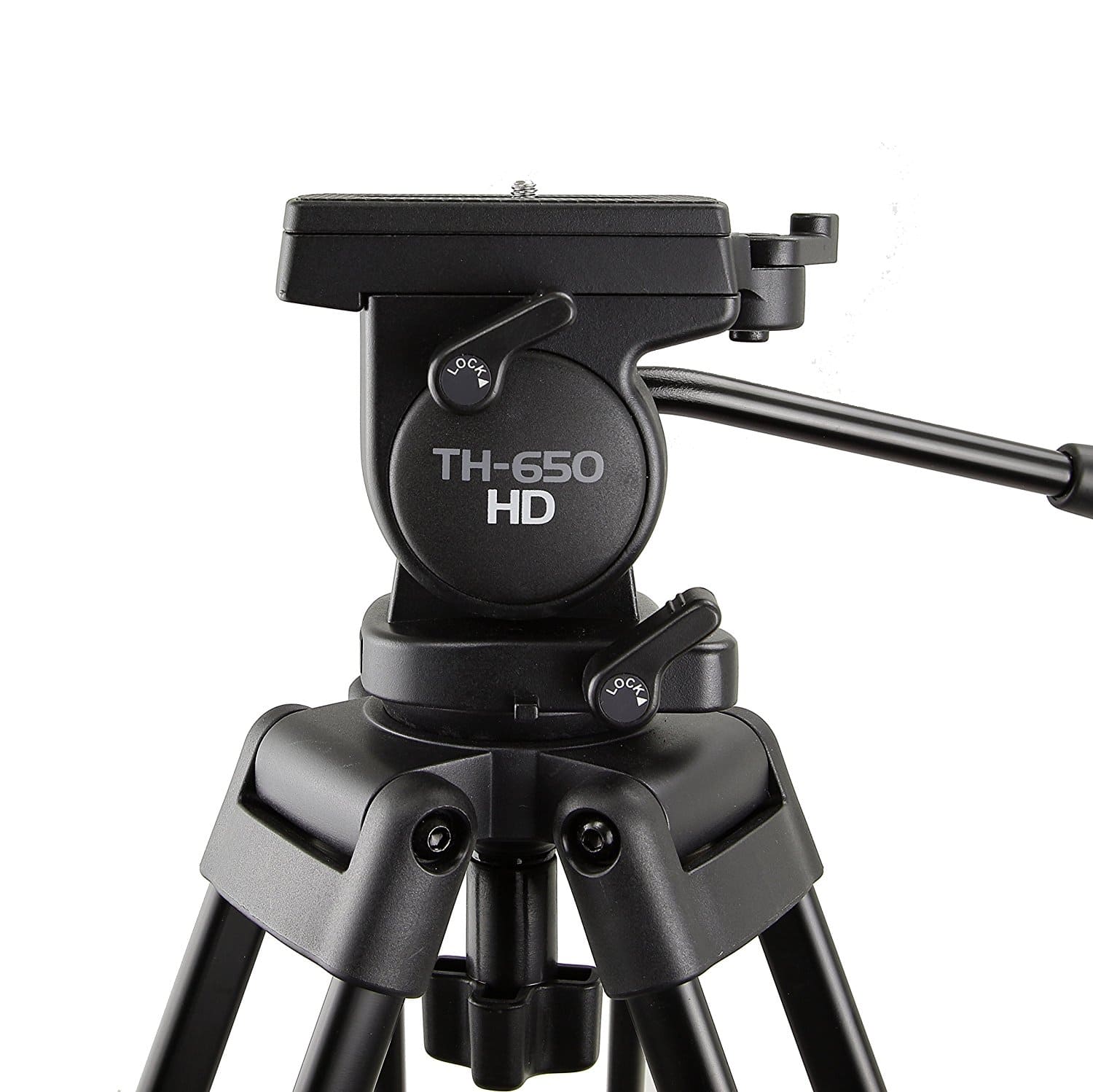

The Libec TH-650HD is a compact, all-in-one tripod system designed for use with today’s smaller DV and HD camcorders and DSLR cameras. It consists of a head with pan handle, two-stage tripod legs, and a mid-level support brace. The head features a built-in, spring-loaded counter balance to help balance for better camera balance and is equipped with a sliding quick-release plate that slides 50mm front to rear, for easier balance adjustment. A carrying case is included for easy storage and transport.
Specifications
| General | |
|---|---|
| Load Capacity | 6.5 lb (3.0 kg) |
| Maximum Height | 59″ (150 cm) |
| Maximum Height w/o Column Extended | N/A |
| Minimum Height | 27.5″ (69.9 cm) |
| Folded Length | Not specified by manufacturer |
| Leveling Bubble/Illuminated | Yes/No |
| Weight | 7.0 lb (3.2 kg) |
| Head | |
|---|---|
| Ball Diameter | 65 mm |
| Counter Balance System | Built-in Spring |
| Quick Release/Wedge Plate | Yes |
| Balance Plate | No |
| Tilt Drag | Fixed |
| Tilt Range | -70° to +90° |
| Tilt Lock | Not specified by manufacturer |
| Spring Loaded Counter Balance | Fixed |
| Pan Range | 360° |
| Pan Lock | Separate |
| Legs | |
|---|---|
| Material | Aluminum |
| Head Attachment Fitting | 65mm half-ball |
| Leg Stages/Sections | 2/3 |
| Leg Lock Type | Not specified by manufacturer |
| Independent Leg Spread | No |
| Spiked/Retractable Feet | Yes |
| Center Brace | Mid-level |
